$3,000.00

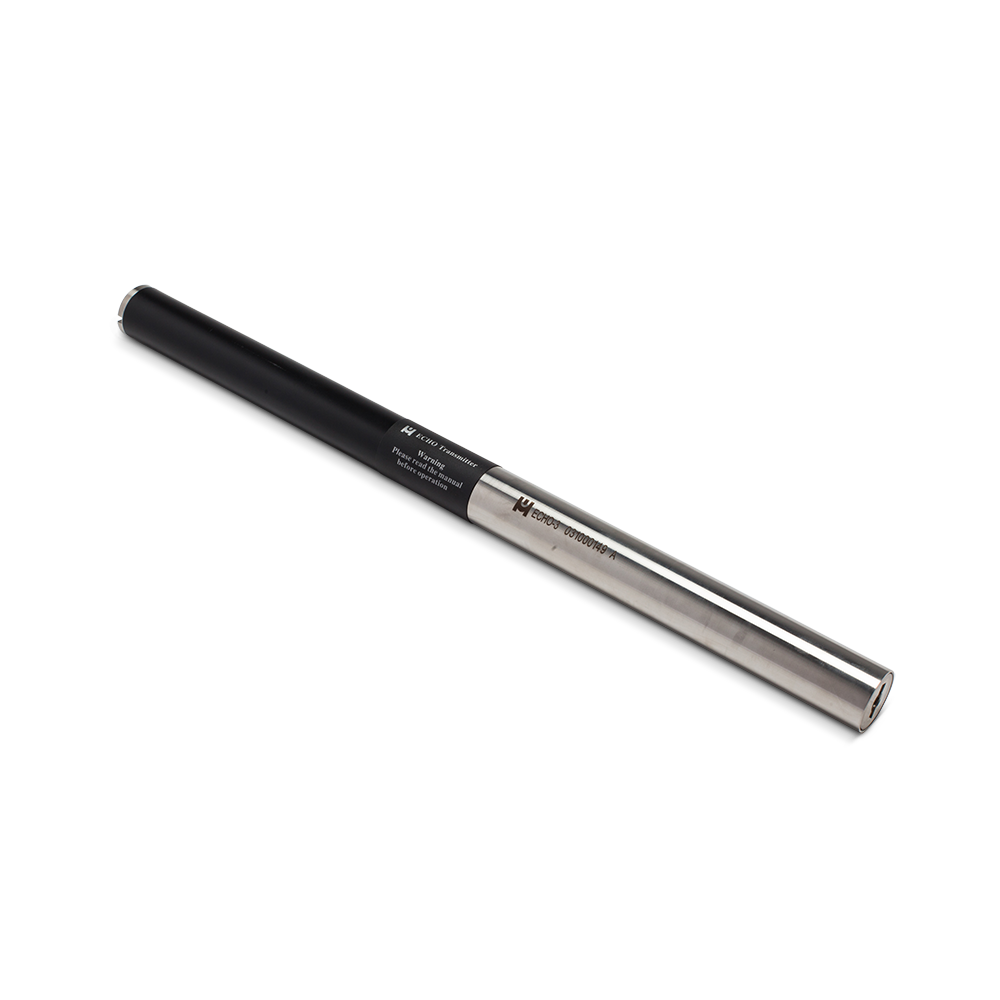

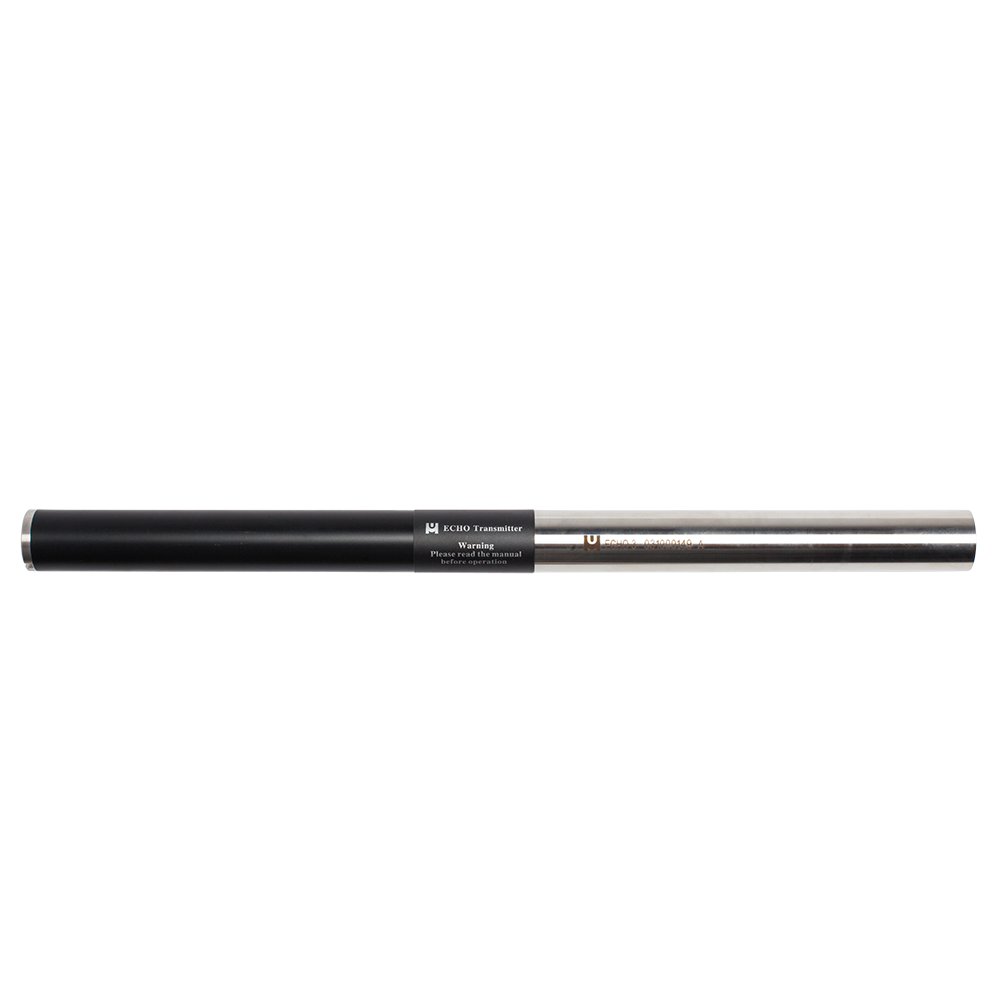

The Echo 3 is an extended range transmitter that offers up to three frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 190 feet in Power + Mode, the Echo 3 offers exceptional versatility in all drilling environments. No job is too big nor is any noise too loud for the Echo 3.
It’s Time to Stand Up
| Weight | 0.88 lbs |
|---|---|
| Dimensions | 19 × 1.25 in |
| Frequency | 4kHz/19kHz/30kHz |
| Depth Range | 90ft/130ft/130ft (normal power) |
| Power | 2 Echo Cell Kits or 2 Lithium Battery Packs |
| Power + Mode | Power + Mode slows data update rate by half and extends date range |
| Battery Life | 50 hours or 160 hours (normal power) |
| Roll | 24 Transmitter Roll Positions |
| Pitch | 0.1% resolution |
| Temperature allowed | Under 190°F |
| Down Hole Echo Mode Change | Able |
